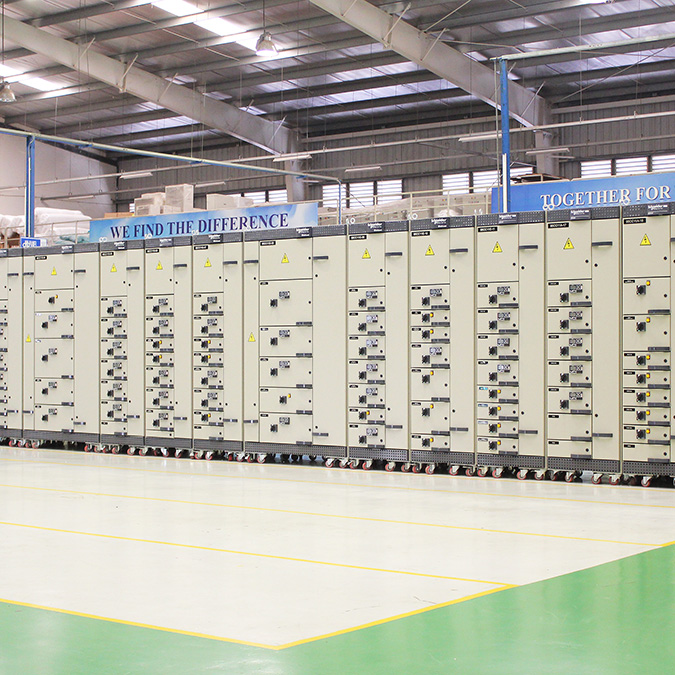

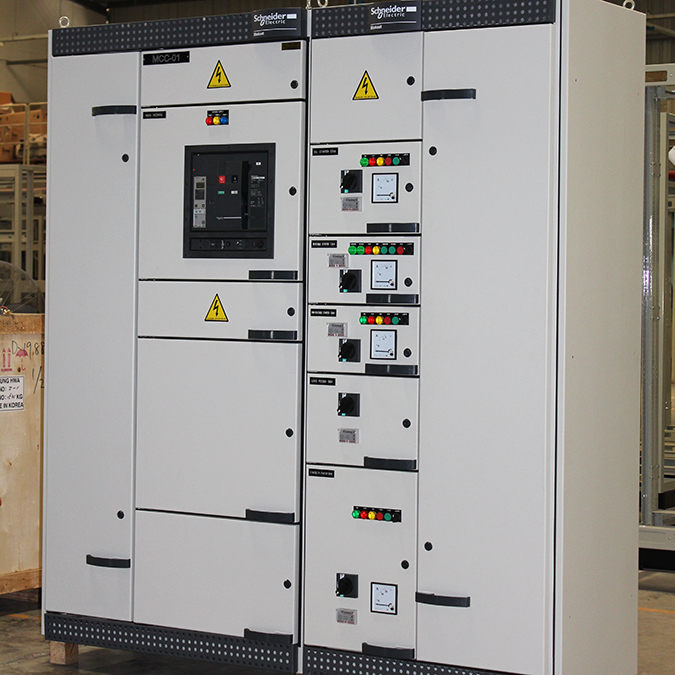

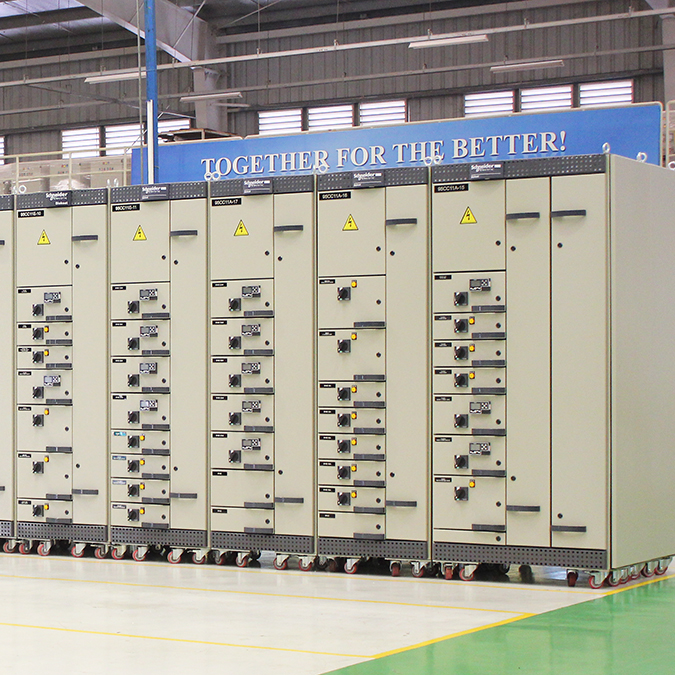

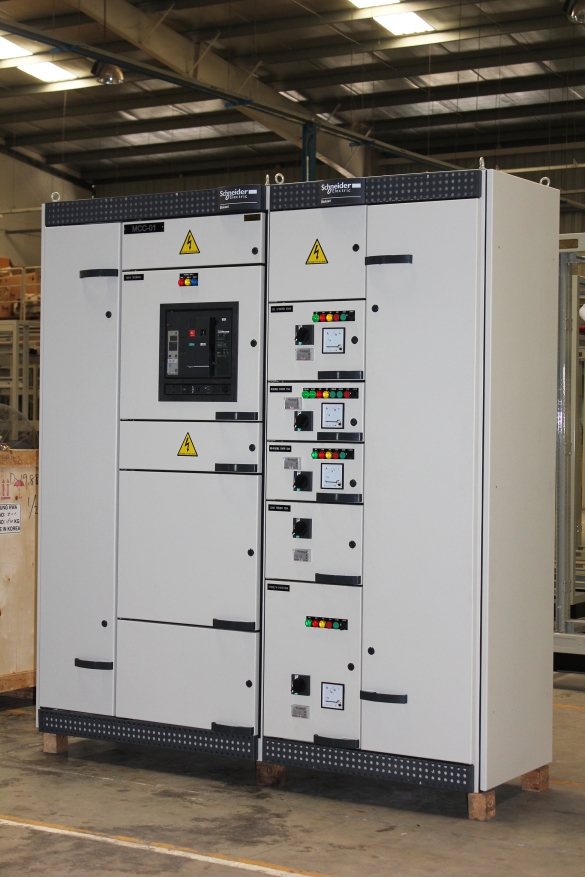

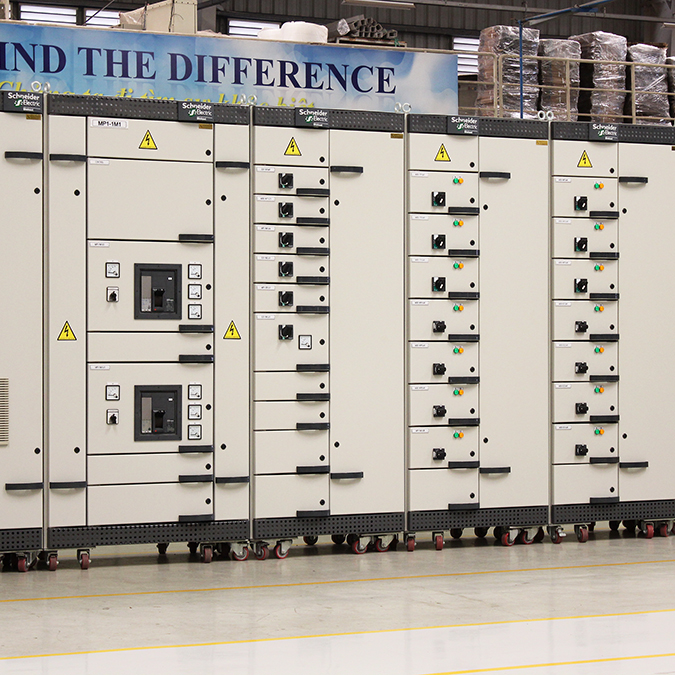

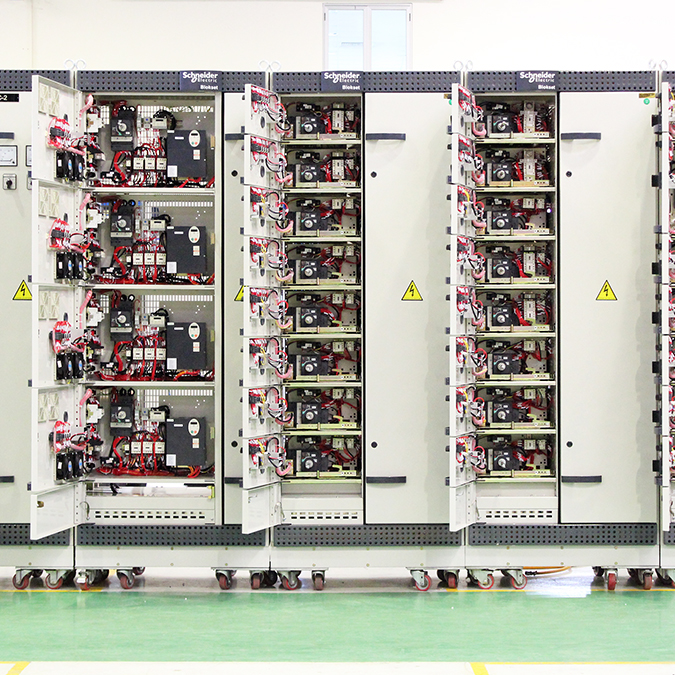

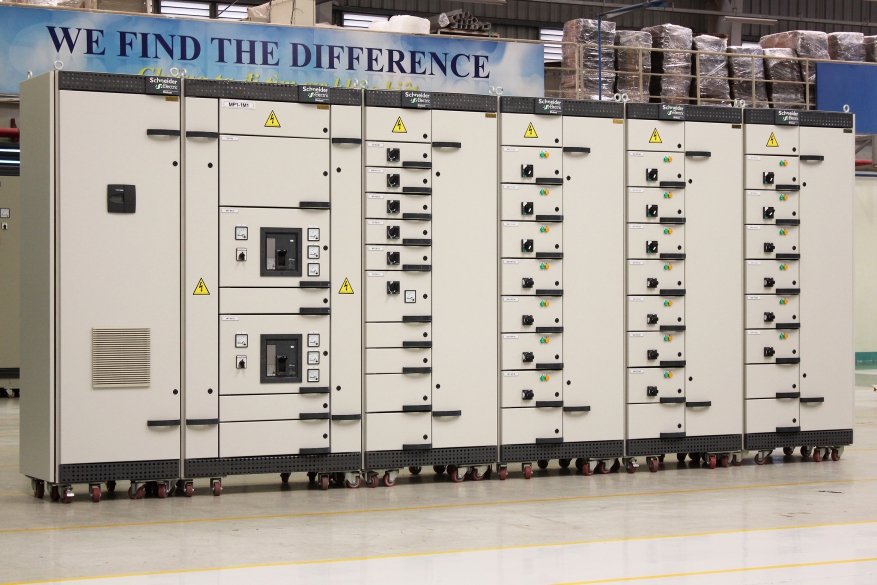

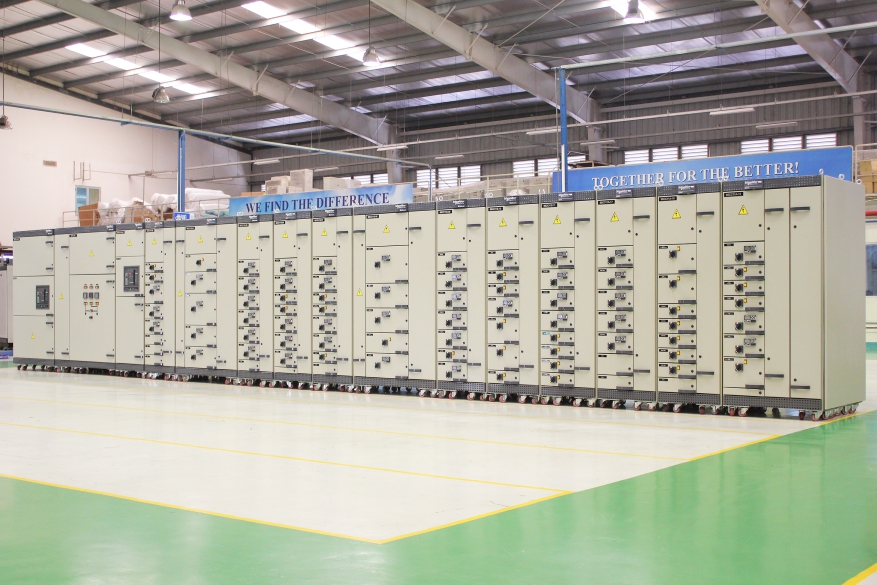

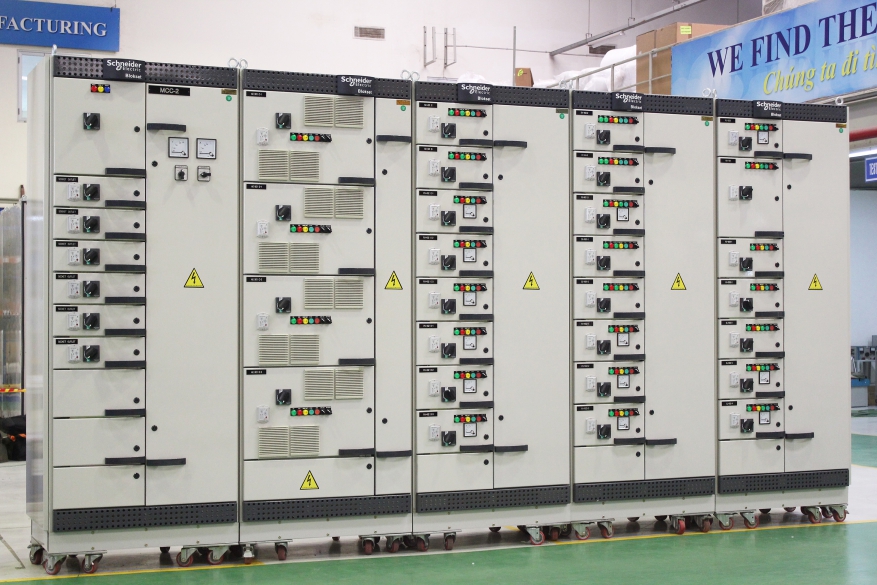

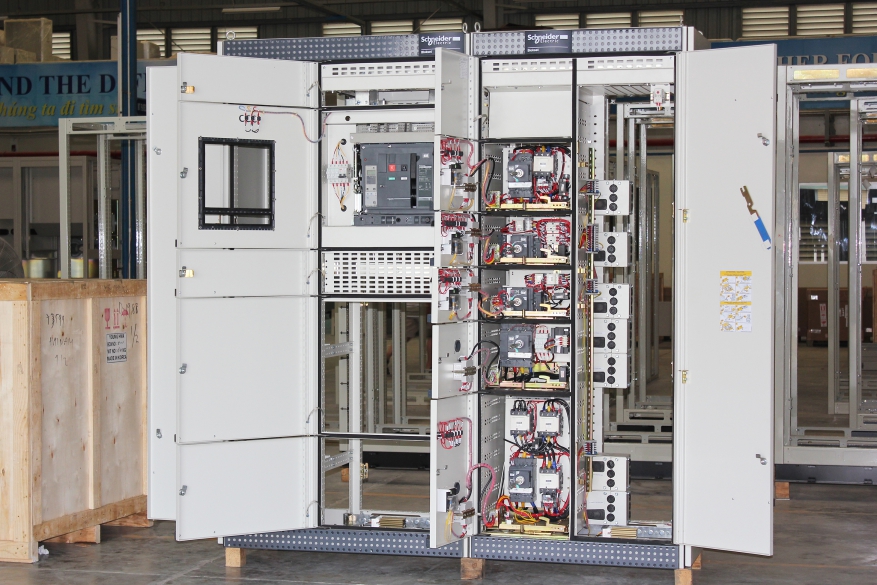

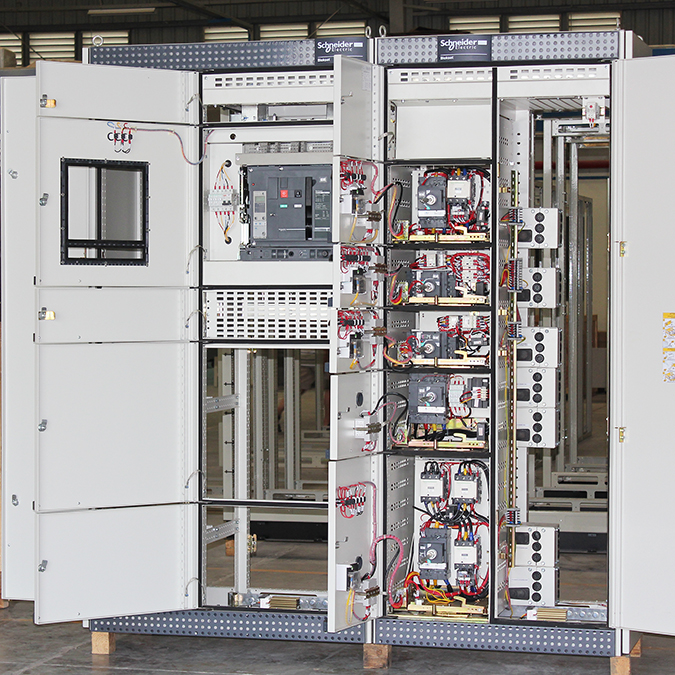

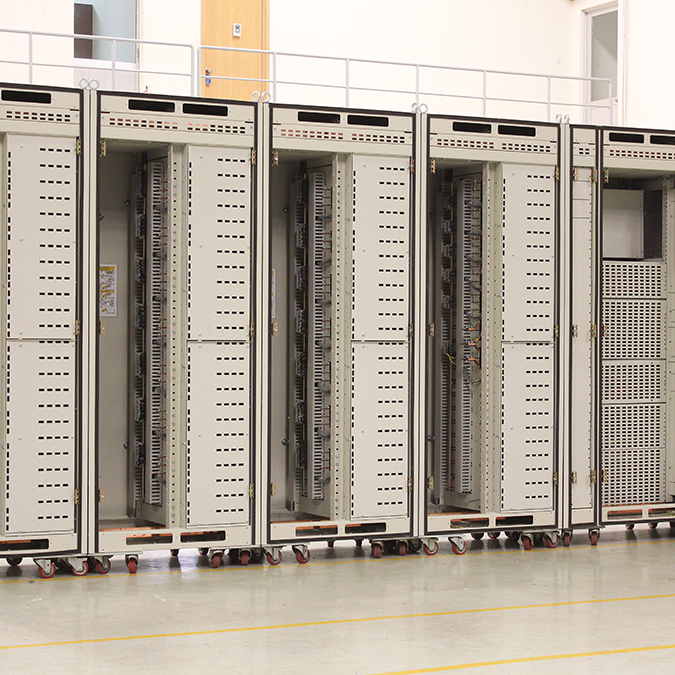

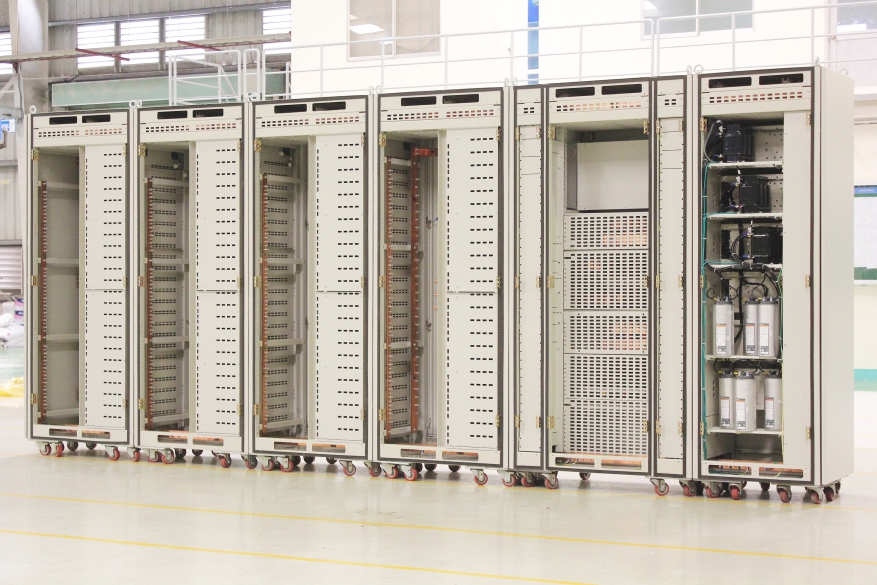

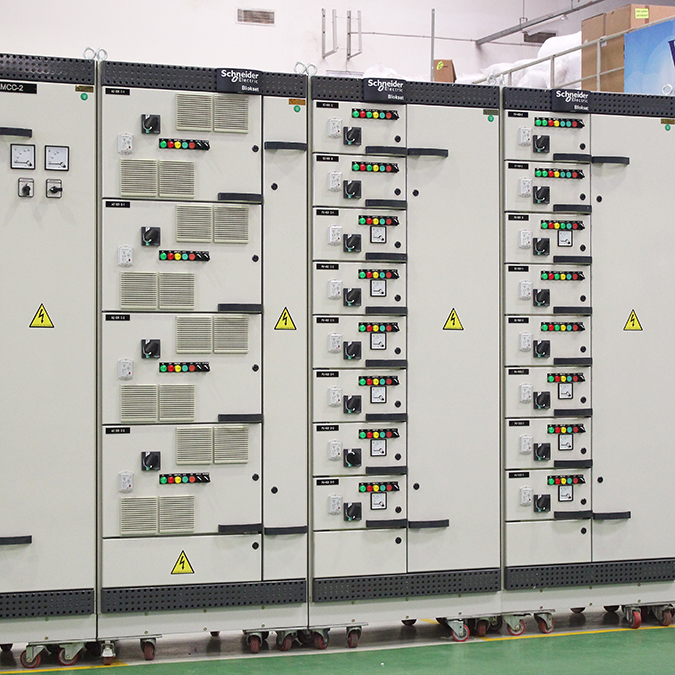

Motor Control Center

The MCC Motor Control Centres are versatile solutions for the needs of the industry even with high nominal currents.

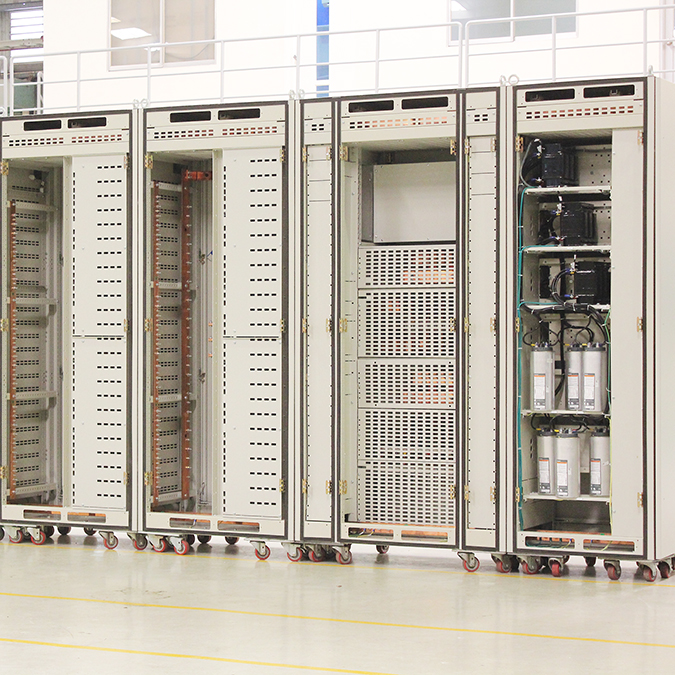

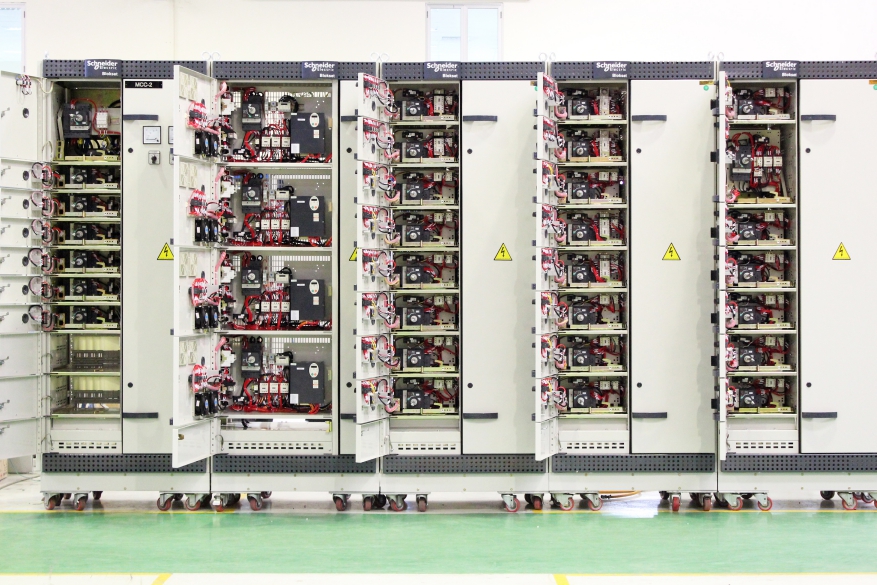

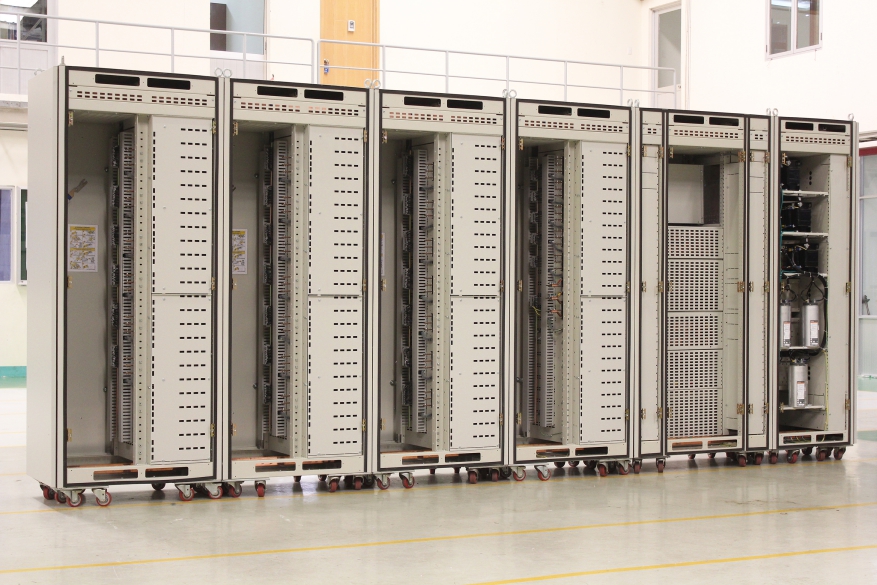

The MCC - system is used in realisation of various types of solutions for the supply and control of electrical motors. With a wide range of selection, form 2b up to 4b, the outgoing units can be withdrawable, removable or fixed. The system also includes instrumentation cabinets, integrated power factor compensation solutions and a busbar trunking system.

Our products are always delivered ready-to-install and special attention has been paid to the productivity of installation. The Hai Nam switchboards are recognised by their modern and stylish colouring: intermediate parts are graphite grey whereas the panels are beige.

General characteristics:
  • Standard: IEC 60439-1, IEC 60947-3
  • Rated Insulation Voltage: 1000VAC
  • Rated Operational Voltage: 690VAC
  • Rated Impulse Withstand Voltage: 12kV
  • Degree of Pollution: 3
  • Frequency: 50Hz
  • Main Busbars:  up to 3200A
  • Rated Peak Withstand Current: 143kA
  • Rated Short-time Current: 65kA / 1s
  • Degree of Protection: up to 54
  • Segregation Form: up to 4b
  • Material: Electro- Galvanized Steel Sheet
  • Metal Sheet Thickness:  2mm
  • External Surface Protection: Epoxy Powder Polymerized at High Temperature
  • Painting Thickness: more than 50 micro mm.
  • Standard Color: RAL 7032, 9002
  • Standard Dimension:
    2090H x 800W x 1080D
    2090H x 800W x 1280D
    2090H x 800W x 1480D
